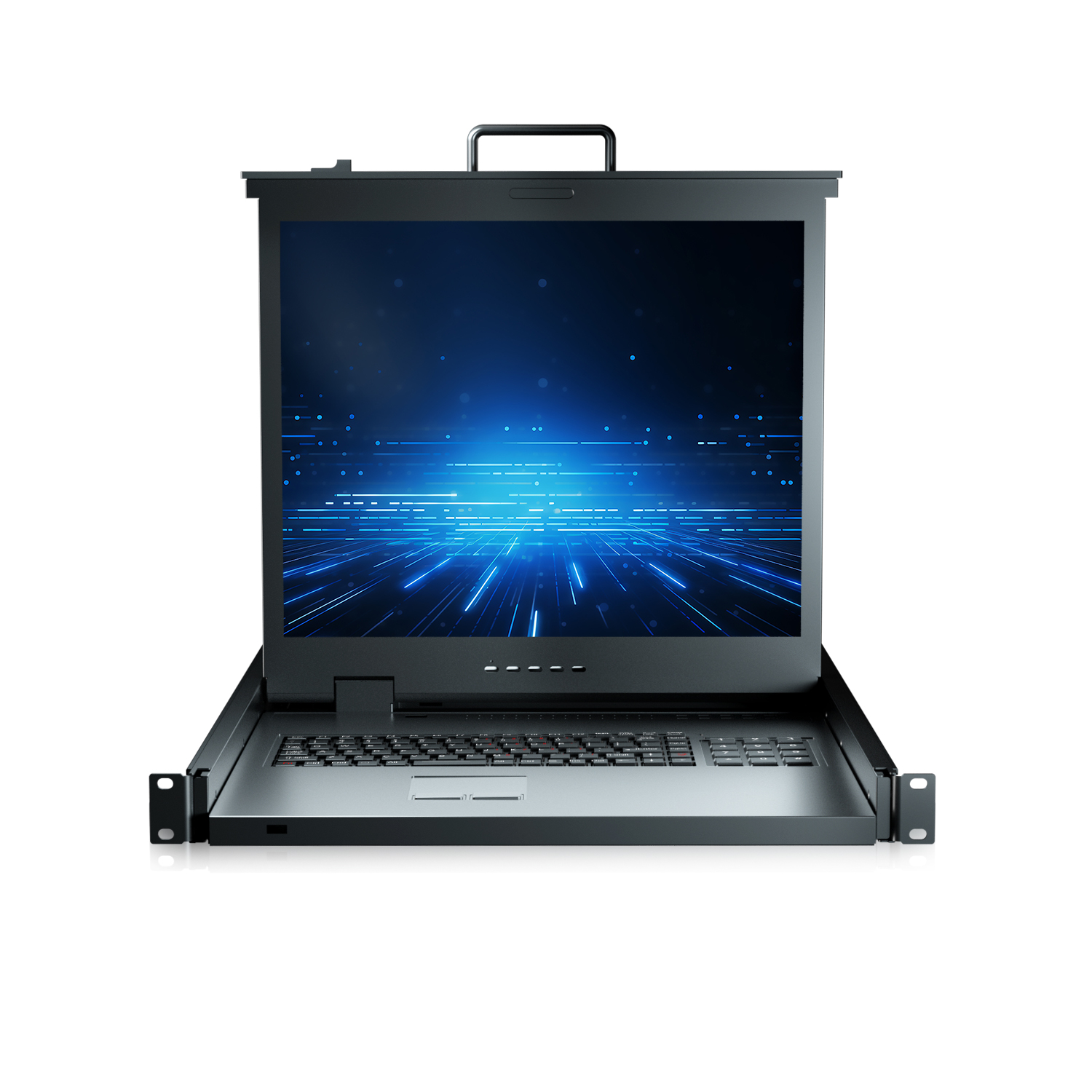

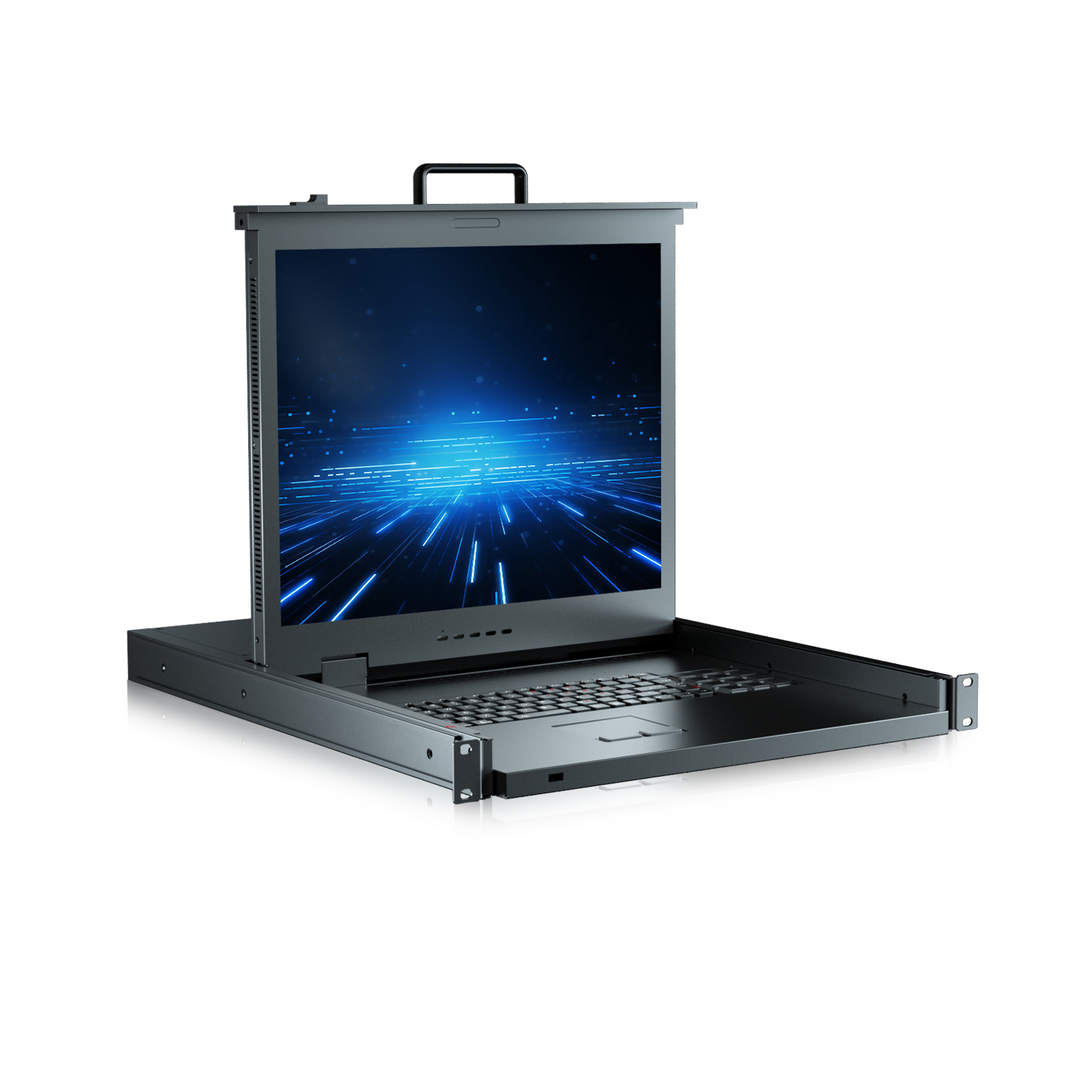

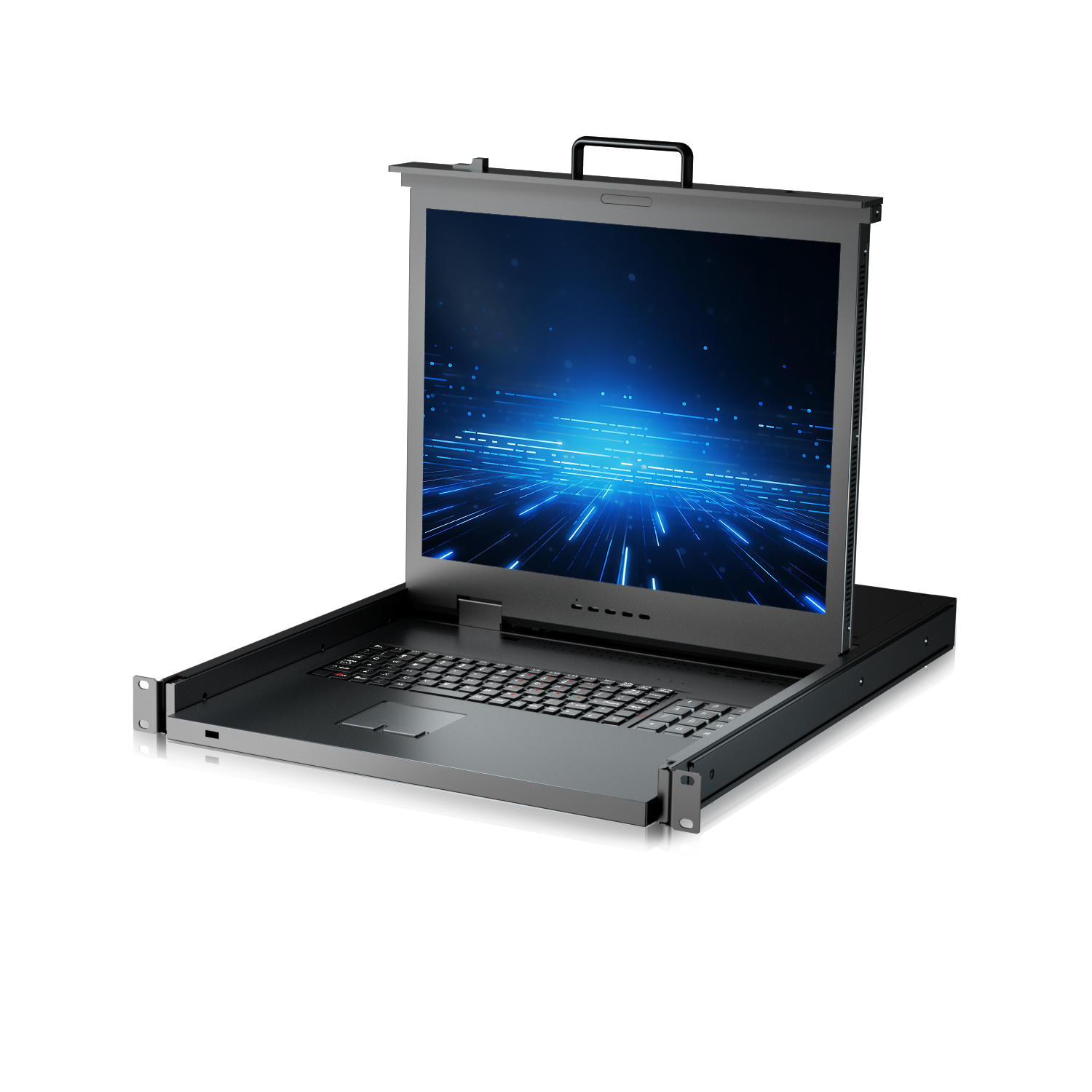

• Integrated 19" LED display/keyboard/mouse/switch four-in-one machine
• LED LCD display adjustment function, guide rail with self-locking device
• Adopts with withdrawing installation design and length can be
  adjusted to fit the rack space • Support a variety of brand industrial computer and the sever, eg:
  IBM、DELL、HP、SUN、Lenovo、advantech、EVOC etc.

RGD-KVM-1908M-VGA

Detail

TECHNICAL SPECIFICATIONS



Computer Connect8 computers, switching cascade can reach 128 computers
Port ConnectorUSB & VGA
Front USB &VGA,IP

USB & VGA

Swith ModeOn-screen menus, hot keys, buttons
Hot KeysScroll-Lock / Caps-Lock /Num-Lock / KVM OSD
LCD Size

19" TFT   LED, Resolution: 1280*1024 @60HZ, Max Color: 16.7M,Brightness: 300nits, Contrast Ratio: 700:1, Pixel Pitch: 377*300 4:3/0.2

Keyboard/Mouse

104 Keys Keyboard   with touchpad

Power InputSupport dual power supply: AC 100-240V~50/60Hz, Or power adapter: 12V 3.33A,The default AC built-in power supply is shipped.
Actual power consumption18W
OS

Microsoft、Linux、Unix etc. operating system

MaterialROHS
Cabinet ColorHigh-temperature spray Black
Dimension592.0mm x 475.0mm x 44.0mm (L x W x H)
Withdraw Distance45MM
Opening Height413MM
WeightN.W. 12.35KG, G.W. 17.45KG
Working Temperature 0℃ ~ +60℃
Storage Temperature-20℃~ +70℃
Humidity0%~80%
