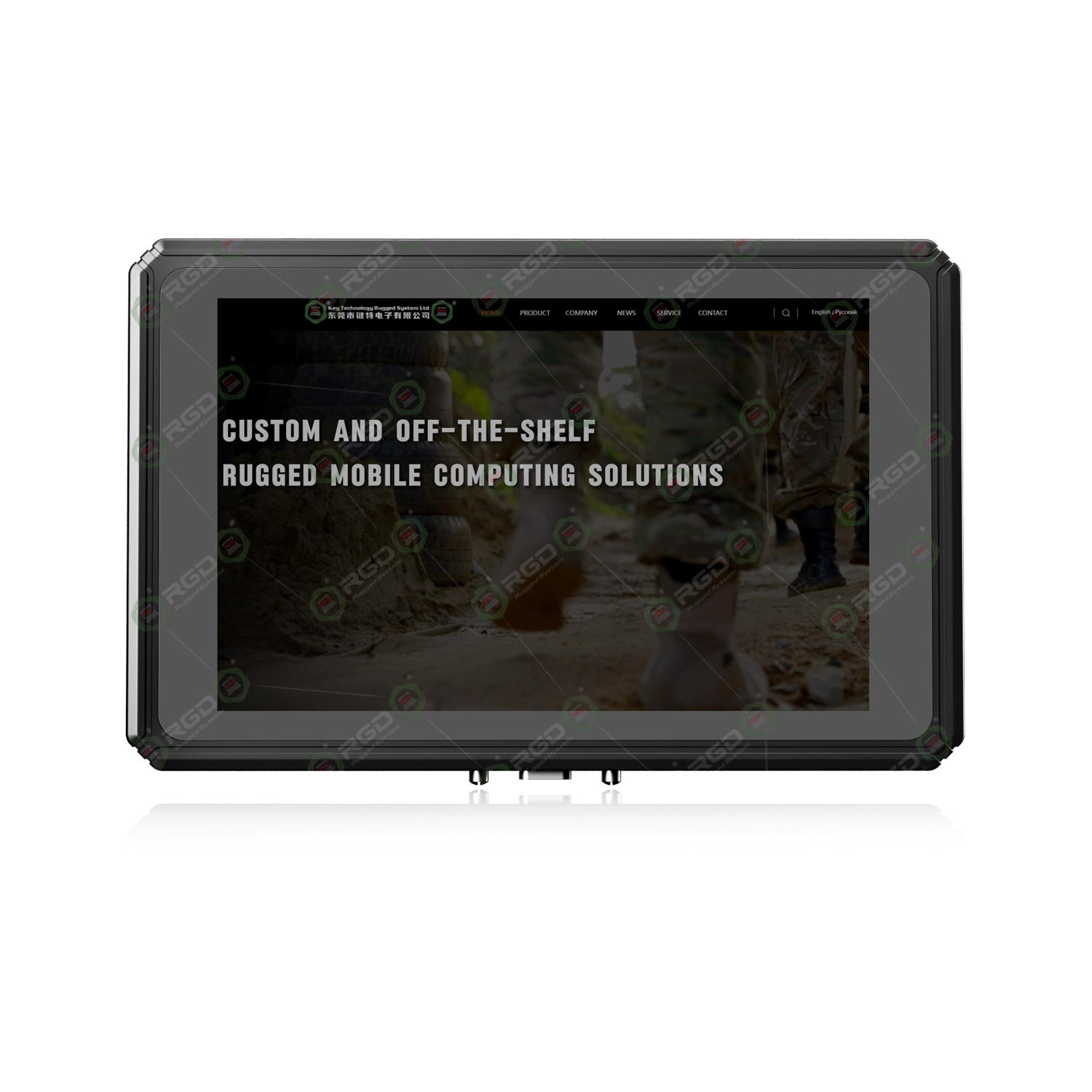

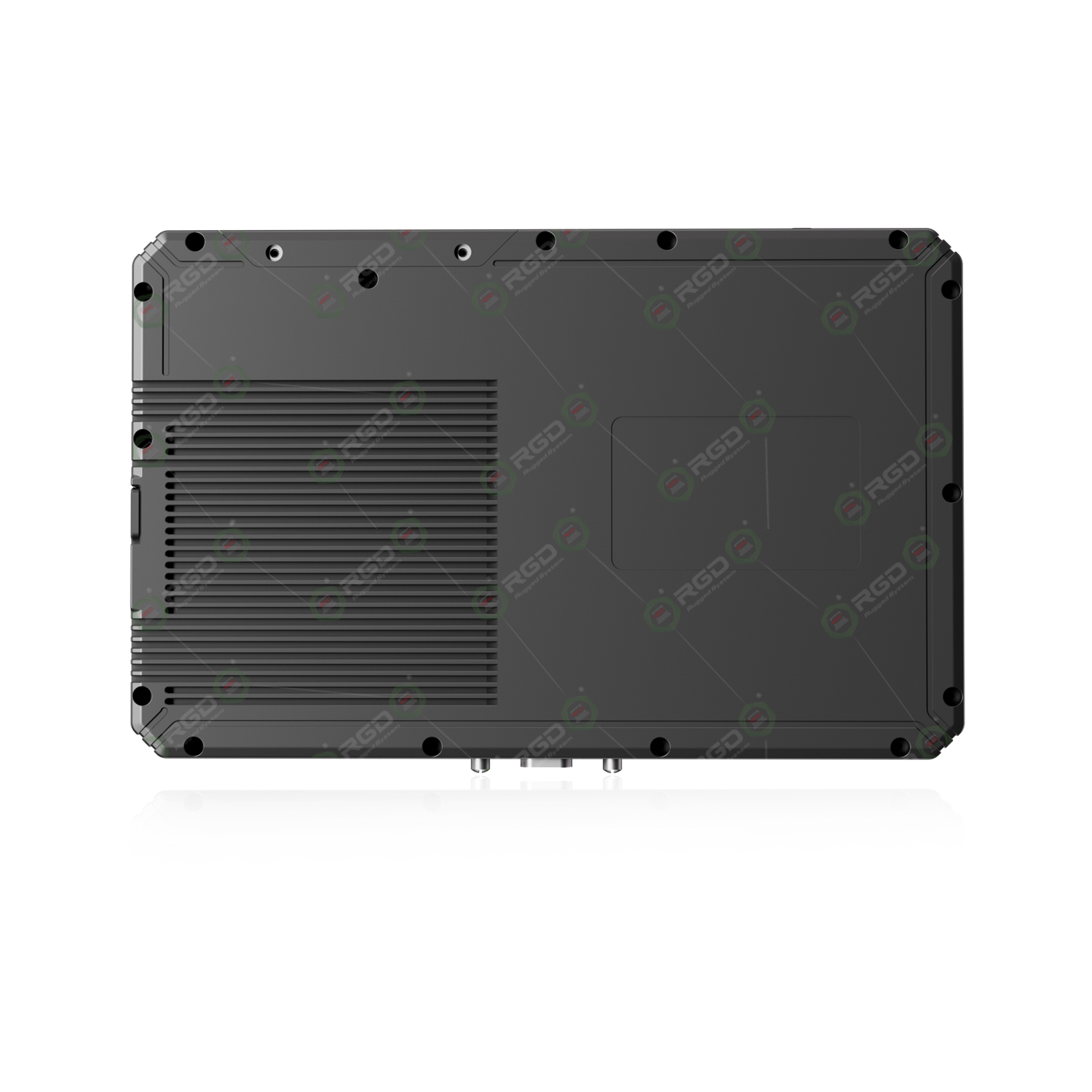

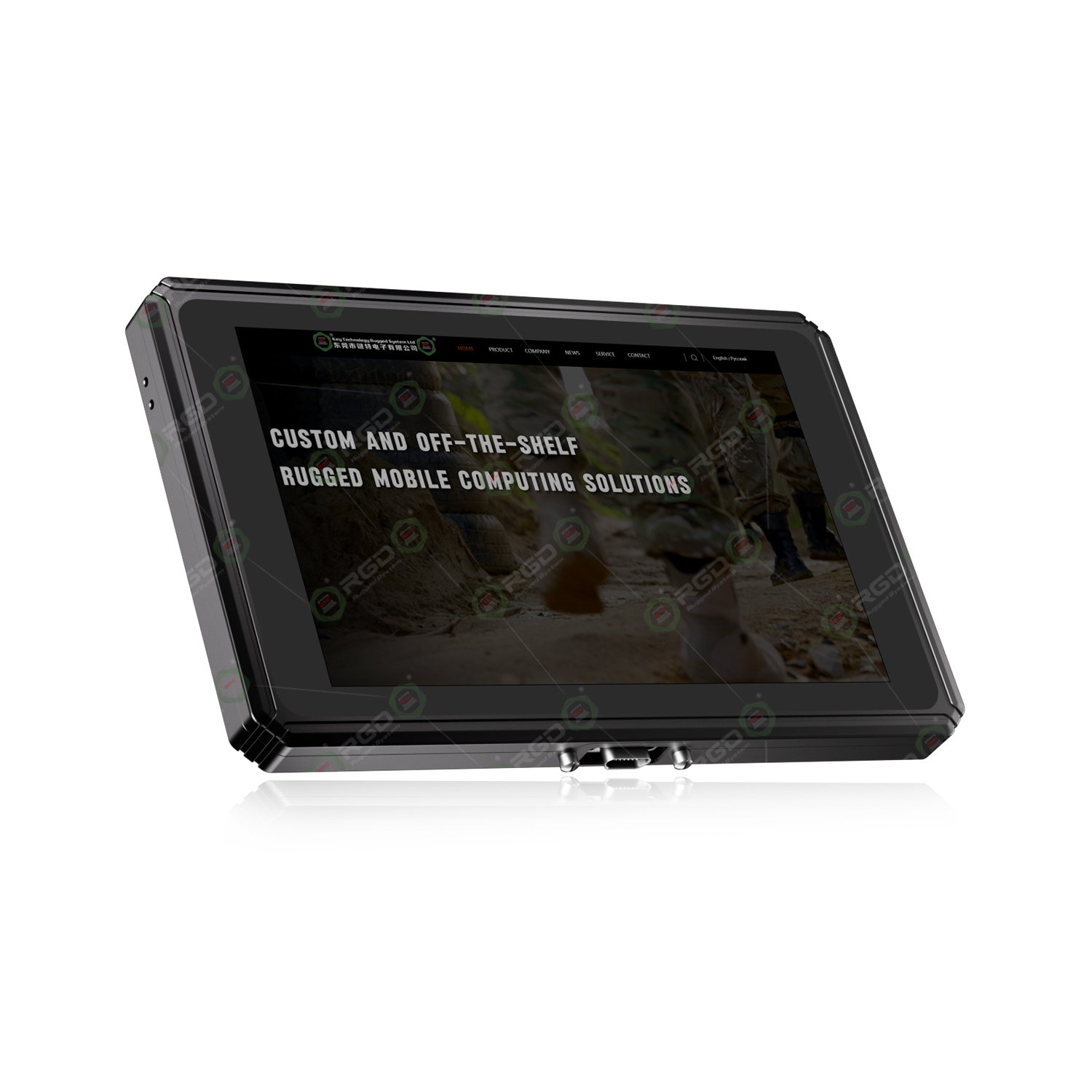

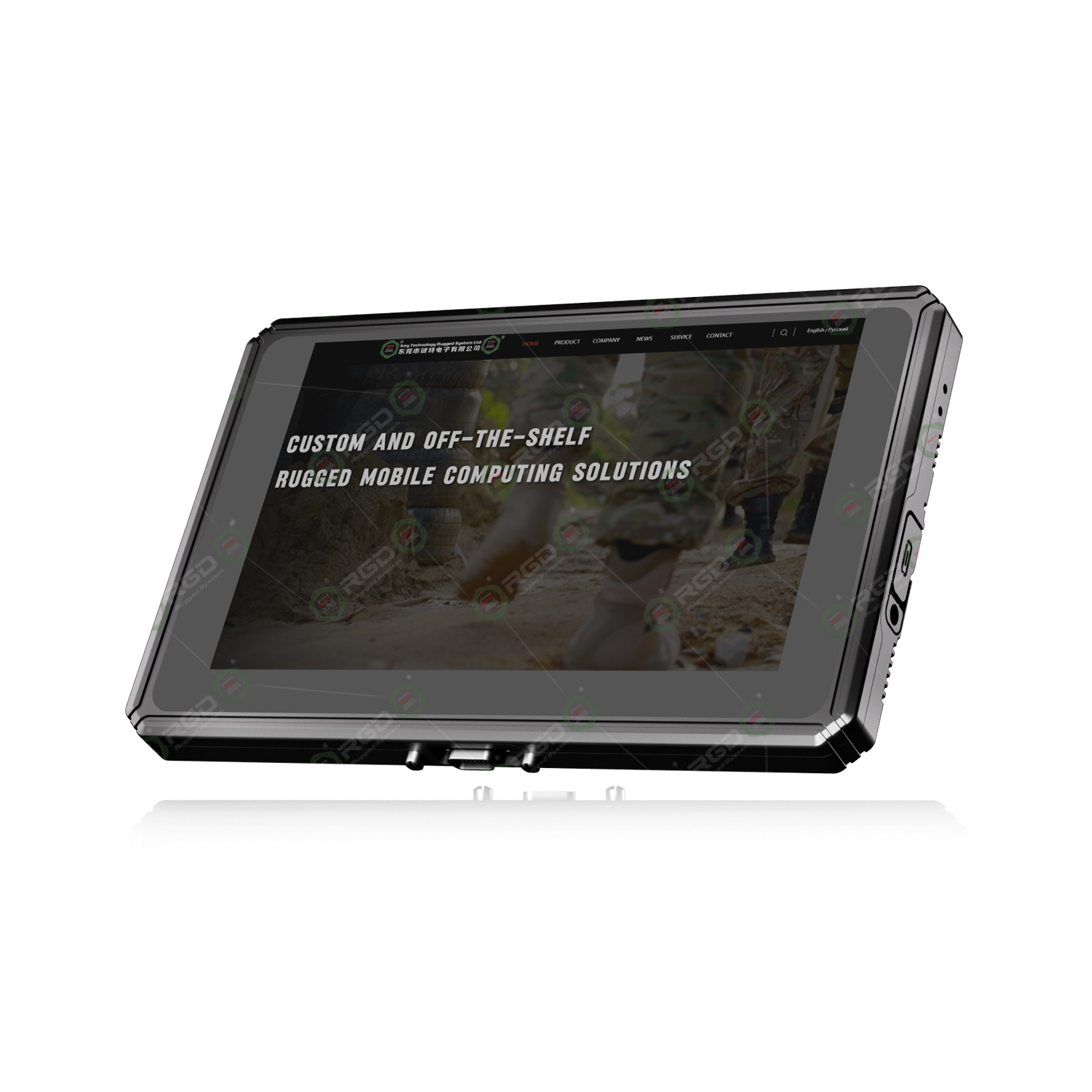

RGD-TPC-AR0800T-0004

Product Features:

1】Rexchip RK3588 Processor

2】8-inch LED display

3】Android mobile operating system

4】One rectangular plug, including one power supply, One serial port, one power supply (5w) serial port,

One power supply (5w)

TECHNICAL SPECIFICATIONS

Processor

Rexchip RK3588 Processor

Memory

DDR4 8GB

Harddisk

SSD 128 GB

Touch Screen

Capacitive touch screen, support multi-touch

Display

8 inches LED display, 1920*1200 resolution

OS

Android mobile operating system

Battery

Li-ion battery 6000mAh

Audio

Built-in speaker

Positioning System

Support Beidou positioning

Ports

1*DC input (aviation plug) Power connector, 1*serial port (aviation plug) Serial port, 8-12V output (Air Plug) Power Output, 1*Gigabit network port (plug) Network Interface

Dimension

220m*140mm* 16mm (excluding protrusions such as plugs, feet, etc.)

Cabinet Color

Black

Material

Magnesium aluminium alloy

Weight

0.65KG

MTBF

≥3000h

MTTR

≤ 30min

Working Temperature

-20℃ ~ +50℃

Storage Temperature

-40℃~ +60℃

Humidity

95% ±3%, 30 ℃ ~60 ℃, 48h, no condensation (switch off)

Waterproof Level

IP67

Electromagnetic Compatibility

MIL-STD-810H   (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.)

Safety：

Structural safety

Shell without sharp edges and corners

Insulation safety

Insulation resistance between power input and housing > 100MΩ

Dielectric strength

Apply AC 1500V test voltage between the input of power adapter and the casing, and no breakdown, flying arc and flickering will occur during the test. No breakdown, flying arc and flickering during the test.

Leakage current

Leakage current between chassis and ground ＞ 3.5mA
